RTE 7000 test

In this example, we showcase the synthesization of the newly released RTE dataset, which contains snaps of the French electric grid. Here, we use one snapshot of the powsybl-compitable data source file, located in ./data/future_snapshot.xiidm.bz2.

import os
import networkx as nx
from collections import Counter

import pypowsybl as ppl

Load the data from source file

grid = ppl.network.load(file='data/future_snapshot.xiidm.bz2')
print('Grid model loaded')

Grid model loaded

nsubstations = len(grid.get_substations())
nvoltage_levels = len(grid.get_voltage_levels())
nbusbars = len(grid.get_busbar_sections())
nlines = len(grid.get_lines())
nbuses = len(grid.get_buses())
ntr = len(grid.get_2_windings_transformers())
nswitches = len(grid.get_switches())
nloads = len(grid.get_loads())
ngens = len(grid.get_generators())

print('Grid statistics:')
print(f'Substations: {nsubstations}, Voltage Levels: {nvoltage_levels}, '
        f'Busbars: {nbusbars}, Buses: {nbuses}, Switches: {nswitches} ,Transformers: {ntr}, Lines: {nlines}, Loads: {nloads},  '
        f'Generators: {ngens}')

Grid statistics:
Substations: 4835, Voltage Levels: 5895, Busbars: 11924, Buses: 6484, Switches: 86083 ,Transformers: 1784, Lines: 7773, Loads: 6915,  Generators: 5658

from powergrid_synth import load_grid

cgmes_dir = os.path.join("data", "future_snapshot.xiidm.bz2")
# load from CGMES via load_grid
graph_ref = load_grid(cgmes_dir)


print(f"Nodes: {graph_ref.number_of_nodes()}")
print(f"Edges: {graph_ref.number_of_edges()}")
print(f"Voltage level map: {graph_ref.graph['base_kv_map']}")

# Bus type breakdown
bus_types = Counter(d["bus_type"] for _, d in graph_ref.nodes(data=True))
print(f"Bus types: {dict(bus_types)}")

Nodes: 6484
Edges: 7725
Voltage level map: {0: 380.0, 1: 225.0, 2: 150.0, 3: 90.0, 4: 63.0, 5: 45.0, 6: 42.0, 7: 20.0}
Bus types: {'Gen': 1290, 'Conn': 2456, 'Load': 2738}

Synthesization

from powergrid_synth import (
    PowerGridGenerator,
    BusTypeAllocator,
    CapacityAllocator,
    LoadAllocator,
    GenerationDispatcher,
    TransmissionLineAllocator,
    extract_topology_params_from_graph,
    TransmissionGrid,
)

# Extract topology characteristics
params = extract_topology_params_from_graph(graph_ref)

Extracting topology parameters...

# Generate synthetic topology
gen = PowerGridGenerator(seed=42)
graph_syn = gen.generate_grid(
    degrees_by_level=params["degrees_by_level"],
    diameters_by_level=params["diameters_by_level"],
    transformer_degrees=params["transformer_degrees"],
    keep_lcc=True,
)

print(f"Reference:  {graph_ref.number_of_nodes()} nodes, {graph_ref.number_of_edges()} edges")
print(f"Synthetic:  {graph_syn.number_of_nodes()} nodes, {graph_syn.number_of_edges()} edges")

--- Starting Generation for 8 Voltage Levels ---
Generating Level 0...
  -> Level 0 Complete. Nodes: 446, Edges: 429
Generating Level 1...
  -> Level 1 Complete. Nodes: 1576, Edges: 1629
Generating Level 2...
  -> Level 2 Complete. Nodes: 74, Edges: 57
Generating Level 3...
  -> Level 3 Complete. Nodes: 1433, Edges: 1479
Generating Level 4...
  -> Level 4 Complete. Nodes: 3947, Edges: 4152
Generating Level 5...
  -> Level 5 Complete. Nodes: 92, Edges: 75
Generating Level 6...
  -> Level 6 Complete. Nodes: 4, Edges: 1
Generating Level 7...
  -> Level 7 Complete. Nodes: 375, Edges: 19
Generating Transformer Connections...
  -> Connecting Level 0 <-> Level 1
  -> Connecting Level 0 <-> Level 3
  -> Connecting Level 0 <-> Level 4
  -> Connecting Level 0 <-> Level 7
  -> Connecting Level 1 <-> Level 2
  -> Connecting Level 1 <-> Level 3
  -> Connecting Level 1 <-> Level 4
  -> Connecting Level 1 <-> Level 5
  -> Connecting Level 1 <-> Level 6
  -> Connecting Level 1 <-> Level 7
  -> Connecting Level 2 <-> Level 4
  -> Connecting Level 2 <-> Level 5
  -> Connecting Level 2 <-> Level 7
  -> Connecting Level 3 <-> Level 4
  -> Connecting Level 3 <-> Level 7
  -> Connecting Level 4 <-> Level 5
  -> Connecting Level 4 <-> Level 7
  -> Connecting Level 5 <-> Level 7
Filtering for Largest Connected Component (LCC)...
  -> Kept 6263 nodes (removed 1684 isolated nodes)
Reference:  6484 nodes, 7725 edges
Synthetic:  6263 nodes, 8701 edges

# Assign bus types
allocator = BusTypeAllocator(graph_syn)
bus_types = allocator.allocate()
nx.set_node_attributes(graph_syn, bus_types, name="bus_type")

bt_counts = Counter(bus_types.values())
print(f"Bus types: {dict(bt_counts)}")

Starting Bus Type Allocation (N=6263, M=8701)...
  Target Entropy Score (W*): 2.6911, Std Dev: 0.0040
  Iter 0: Best Error = 0.083843
  Iter 10: Best Error = 0.070061
  Iter 20: Best Error = 0.062978
  Iter 30: Best Error = 0.055336
  Iter 40: Best Error = 0.047934
  Iter 50: Best Error = 0.041378
  Iter 60: Best Error = 0.032734
  Iter 70: Best Error = 0.024847
  Iter 80: Best Error = 0.015581
  Iter 90: Best Error = 0.007745
Bus types: {'Gen': 2005, 'Load': 2929, 'Conn': 1329}

# Allocate generation, load, dispatch, and transmission lines
base_kv_map = graph_ref.graph.get("base_kv_map", {0: 110.0})

CapacityAllocator(graph_syn).allocate()
LoadAllocator(graph_syn).allocate(loading_level="H")
GenerationDispatcher(graph_syn).dispatch()
TransmissionLineAllocator(graph_syn).allocate()

print("Full synthesis pipeline complete ✓")
print(f"Synthetic grid: {graph_syn.number_of_nodes()} nodes, {graph_syn.number_of_edges()} edges")

Allocating Capacity for 2005 generators.
Total System Capacity Target: 284514.80 MW using Reference System 1
Warning: Total generation capacity is 0. Switching to 'D' (Deterministic) loading.
Allocating Loads for 2929 load buses.
Total System Load Target: 163876.94 MW (Level: D)
Full synthesis pipeline complete ✓
Synthetic grid: 6263 nodes, 8701 edges

from powergrid_synth import GraphComparator, GridVisualizer

comparator = GraphComparator(graph_syn, graph_ref)

# Compare degree distributions per voltage level
df = comparator.compare_degree_distributions()
df

=================================================================
DEGREE DISTRIBUTION COMPARISON  (KS & Relative Hausdorff)
=================================================================
  Level KS Statistic RH Distance
Level 0       0.1160      0.1000
Level 1       0.0997      0.1429
Level 2       0.1053      0.2000
Level 3       0.1410      0.1667
Level 4       0.1209      0.3125
Level 5       0.2871      0.2500
Level 6       0.0000      0.0000
Level 7       0.0246      0.6000
=================================================================

# Degree distribution comparison

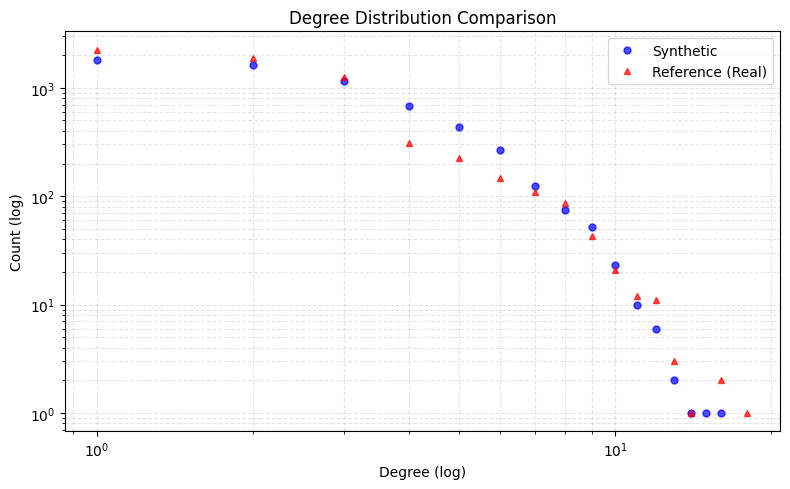

comparator.plot_degree_comparison(log_scale=True)

Run some power flows using pandapower or powsybl

from powergrid_synth import pandapower_to_pypowsybl, nx_to_pandapower
import pandapower as pp

base_kv_list = graph_ref.graph.get("base_kv_map", {0: 110.0})
# Convert synthetic transmission grid to pandapower
net_syn_pp = nx_to_pandapower(graph_syn, base_kv_map=base_kv_list)
print(f"pandapower network: {len(net_syn_pp.bus)} buses, {len(net_syn_pp.line)} lines, "
      f"{len(net_syn_pp.trafo)} trafos")

# Run DC power flow via pandapower
try:
    pp.rundcpp(net_syn_pp)
    print(f"\nDC power flow converged ✓")
    print(f"  Max bus voltage angle: {net_syn_pp.res_bus.va_degree.max():.2f}°")
    print(f"  Min bus voltage angle: {net_syn_pp.res_bus.va_degree.min():.2f}°")
except Exception as e:
    print(f"DC power flow failed: {e}")

pandapower network: 6263 buses, 7697 lines, 1004 trafos

DC power flow converged ✓
  Max bus voltage angle: 0.00°
  Min bus voltage angle: -0.00°

Run AC using pypowsybl

ppl_net = pandapower_to_pypowsybl(net_syn_pp)
ppl.loadflow.run_ac(ppl_net)

[ComponentResult(connected_component_num=0, synchronous_component_num=0, status=CONVERGED, status_text=Converged, iteration_count=1, reference_bus_id='sub_1_0', slack_bus_results=[SlackBusResult(id='sub_1_0', active_power_mismatch=-9.999999999999999e-05)], distributed_active_power=0.0)]

from pypowsybl_jupyter import network_explorer, nad_explorer, display_nad

# nad_explorer(ppl_net, depth=3)

ppl_net.get_network_area_diagram()

grid.get_network_area_diagram()
