Distribution Feeder Synthesis from a Reference Grid
Demonstrates the Schweitzer et al. (2017) synthesis pipeline starting from a real/reference distribution grid (CIGRE LV via pandapower).
Workflow: Load reference grid → Convert to Schweitzer format → Fit parameters → Generate synthetic feeders → Validate & compare
[1]:
import numpy as np
import networkx as nx
import matplotlib.pyplot as plt
from collections import Counter
import pandapower as pp
import pandapower.networks as pn
from powergrid_synth import (
GridVisualizer,
GraphComparator,
DistributionGrid,
)
from powergrid_synth.distribution import (
SchweetzerFeederGenerator,
DistributionSynthParams,
compute_emergent_properties,
validate_tree,
compare_feeders,
fit_params_from_feeders,
pandapower_to_feeders,
feeder_summary,
)
1. Load Reference Distribution Grid (CIGRE LV)
[2]:
net_ref = pn.create_cigre_network_lv()
print(f"Buses: {len(net_ref.bus)}, Lines: {len(net_ref.line)}, Loads: {len(net_ref.load)}, Gens: {len(net_ref.sgen)}")
print(f"Ext grid bus: {net_ref.ext_grid.bus.values}")
Buses: 44, Lines: 37, Loads: 15, Gens: 0
Ext grid bus: [0]
[3]:

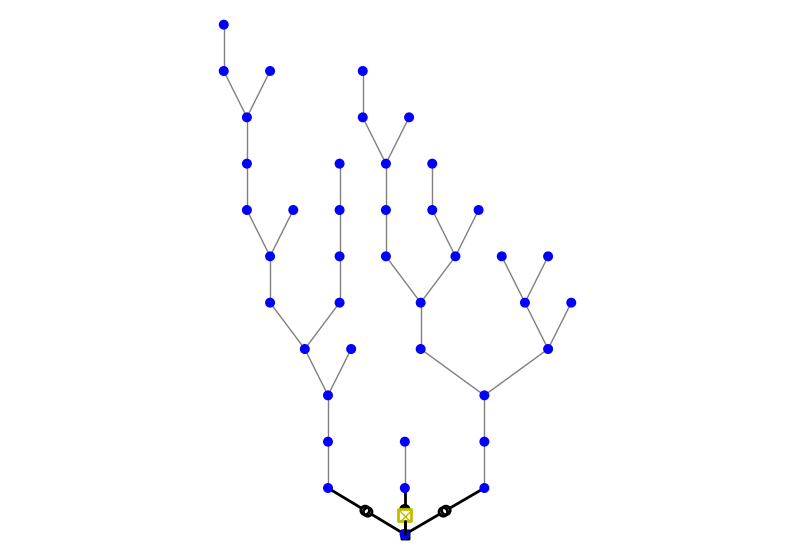

fig, ax = plt.subplots(figsize=(10, 7))
pp.plotting.simple_plot(net_ref, ax=ax)
[3]:
<Axes: >
2. Convert Reference Grid to Schweitzer Format
The pandapower_to_feeders function from powergrid_synth.distribution extracts Schweitzer-format feeder graphs from a pandapower network, handling lines, transformers, and switches. We wrap the result as DistributionGrid objects to access convenience properties like .root, .max_hop, .total_load_mw, etc.
[4]:
raw_feeders = pandapower_to_feeders(net_ref)
ref_feeders = [DistributionGrid.from_nx(f) for f in raw_feeders]
[5]:
print(f"Extracted {len(ref_feeders)} feeder(s) from reference grid\n")
for i, f in enumerate(ref_feeders):
print(f"Feeder {i}: {f.number_of_nodes()} nodes, {f.number_of_edges()} edges")
print(f" Root: {f.root}, Max hop: {f.max_hop}, Is radial: {f.is_radial}")
print(f" Load nodes: {len(f.nodes_by_type('load'))}, "
f"Injection: {len(f.nodes_by_type('injection'))}, "
f"Intermediate: {len(f.nodes_by_type('intermediate'))}")
print(f" Total load: {f.total_load_mw:.4f} MW, Total gen: {f.total_gen_mw:.4f} MW")
Extracted 1 feeder(s) from reference grid
Feeder 0: 44 nodes, 43 edges
Root: 0, Max hop: 12, Is radial: True
Load nodes: 15, Injection: 0, Intermediate: 29
Total load: 0.6866 MW, Total gen: 0.0000 MW
3. Fit Schweitzer Parameters from Reference Feeders
[6]:
defaults = DistributionSynthParams()
fitted_raw = fit_params_from_feeders(ref_feeders)
# The CIGRE LV network is small (1 feeder, 44 nodes), so some fitted parameters
# may be degenerate. We merge fitted values with sensible defaults.
from powergrid_synth.distribution import ModifiedCauchyParams
fitted_params = DistributionSynthParams(
hop_dist=fitted_raw.hop_dist,
degree_dist=fitted_raw.degree_dist,
degree_clip=fitted_raw.degree_clip,
intermediate_frac=fitted_raw.intermediate_frac,
injection_frac=fitted_raw.injection_frac,
load_deviation=fitted_raw.load_deviation,
# Use defaults for cable length if gamma is degenerate (≈0)
cable_length=(
fitted_raw.cable_length
if fitted_raw.cable_length.gamma > 0.001
else defaults.cable_length
),
length_clip=fitted_raw.length_clip,
)
print(f"{'Parameter':35s} {'Paper (Table III)':>18s} {'Used':>18s}")
print("-" * 73)
print(f"{'hop_dist.r':35s} {defaults.hop_dist.r:18.3f} {fitted_params.hop_dist.r:18.3f}")
print(f"{'hop_dist.p':35s} {defaults.hop_dist.p:18.3f} {fitted_params.hop_dist.p:18.3f}")
print(f"{'degree_dist.pi':35s} {defaults.degree_dist.pi:18.3f} {fitted_params.degree_dist.pi:18.3f}")
print(f"{'cable_length.x0':35s} {defaults.cable_length.x0:18.3f} {fitted_params.cable_length.x0:18.3f}")
print(f"{'cable_length.gamma':35s} {defaults.cable_length.gamma:18.3f} {fitted_params.cable_length.gamma:18.3f}")
Parameter Paper (Table III) Used
-------------------------------------------------------------------------
hop_dist.r 3.140 10.560
hop_dist.p 0.410 0.685
degree_dist.pi 0.850 0.762
cable_length.x0 0.119 0.119
cable_length.gamma 0.159 0.159
4. Generate Synthetic Feeders Using Fitted Parameters
[7]:
# Use the reference feeder's size and load as targets
ref = ref_feeders[0]
n_ref = ref.number_of_nodes()
print(f"Reference feeder: {n_ref} nodes, {ref.total_load_mw:.4f} MW load, {ref.total_gen_mw:.4f} MW gen")
# Generate a single synthetic feeder with fitted parameters
gen = SchweetzerFeederGenerator(params=fitted_params, seed=42)
G_syn = DistributionGrid.from_nx(
gen.generate_feeder(
n_nodes=n_ref,
total_load_mw=ref.total_load_mw,
total_gen_mw=ref.total_gen_mw,
v_nom_kv=0.4,
)
)
print(f"\nSynthetic feeder: {G_syn.number_of_nodes()} nodes, {G_syn.number_of_edges()} edges")
print(f"Root: {G_syn.root}, Max hop: {G_syn.max_hop}, Is radial: {G_syn.is_radial}")
Reference feeder: 44 nodes, 0.6866 MW load, 0.0000 MW gen
Synthetic feeder: 44 nodes, 43 edges
Root: 0, Max hop: 10, Is radial: True
5. Compare Reference vs. Synthetic Feeder Properties
[8]:
props_ref = compute_emergent_properties(ref)
props_syn = compute_emergent_properties(G_syn)
print(f"{'Property':30s} {'Reference':>12s} {'Synthetic':>12s}")
print("-" * 56)
for key in props_ref:
vr = props_ref[key]
vs = props_syn.get(key, "N/A")
if isinstance(vr, float):
print(f"{key:30s} {vr:12.4f} {vs:12.4f}")
else:
print(f"{key:30s} {str(vr):>12s} {str(vs):>12s}")
# Also show DistributionGrid-specific properties
print(f"\n{'--- DistributionGrid properties ---':^56}")
print(f"{'root':30s} {str(ref.root):>12s} {str(G_syn.root):>12s}")
print(f"{'max_hop':30s} {ref.max_hop:12d} {G_syn.max_hop:12d}")
print(f"{'is_radial':30s} {str(ref.is_radial):>12s} {str(G_syn.is_radial):>12s}")
print(f"{'total_load_mw':30s} {ref.total_load_mw:12.4f} {G_syn.total_load_mw:12.4f}")
print(f"{'total_gen_mw':30s} {ref.total_gen_mw:12.4f} {G_syn.total_gen_mw:12.4f}")
Property Reference Synthetic
--------------------------------------------------------
n_nodes 44 44
n_edges 43 43
max_hop 12 10
mean_degree 1.9545 1.9545
total_load_mw 0.6866 3.4176
total_gen_mw 0 0
frac_intermediate 0.6591 0.0455
frac_injection 0.0000 0.0000
mean_length_km 0.0319 0.0132
max_length_km 0.2000 0.0295
total_length_km 1.3730 0.5659
--- DistributionGrid properties ---
root 0 0
max_hop 12 10
is_radial True True
total_load_mw 0.6866 3.4176
total_gen_mw 0.0000 0.0000
6. Visualize Reference and Synthetic Feeders

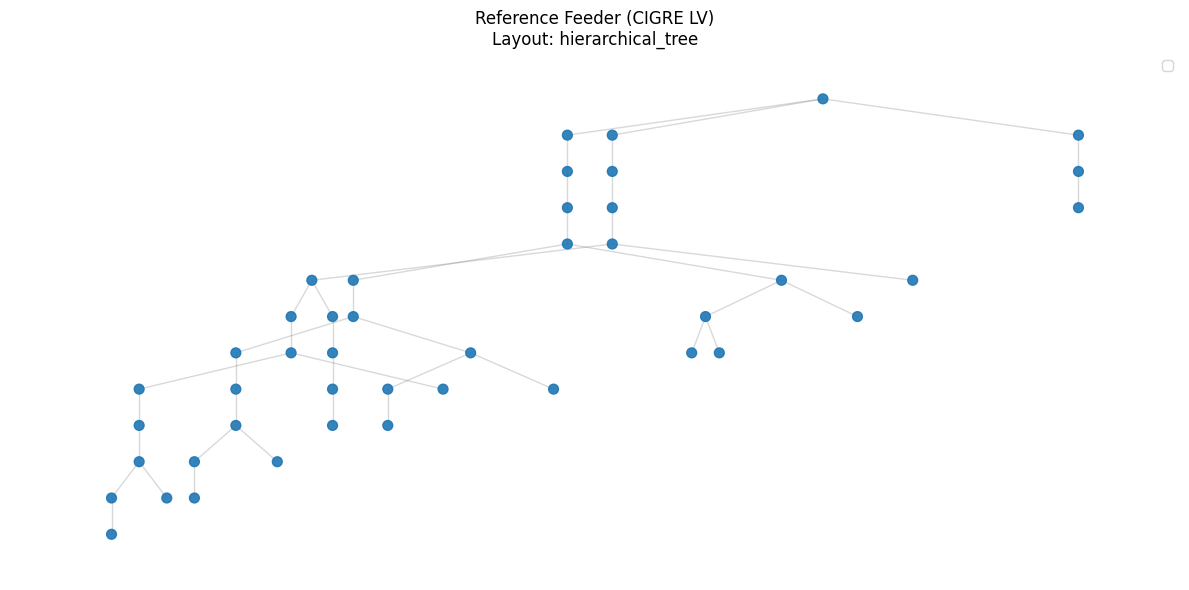

[9]:
viz = GridVisualizer()
viz.plot_grid(
ref,
layout="hierarchical_tree",
title="Reference Feeder (CIGRE LV)",
figsize=(12, 6),
)
Calculating layout 'hierarchical_tree'...
[10]:

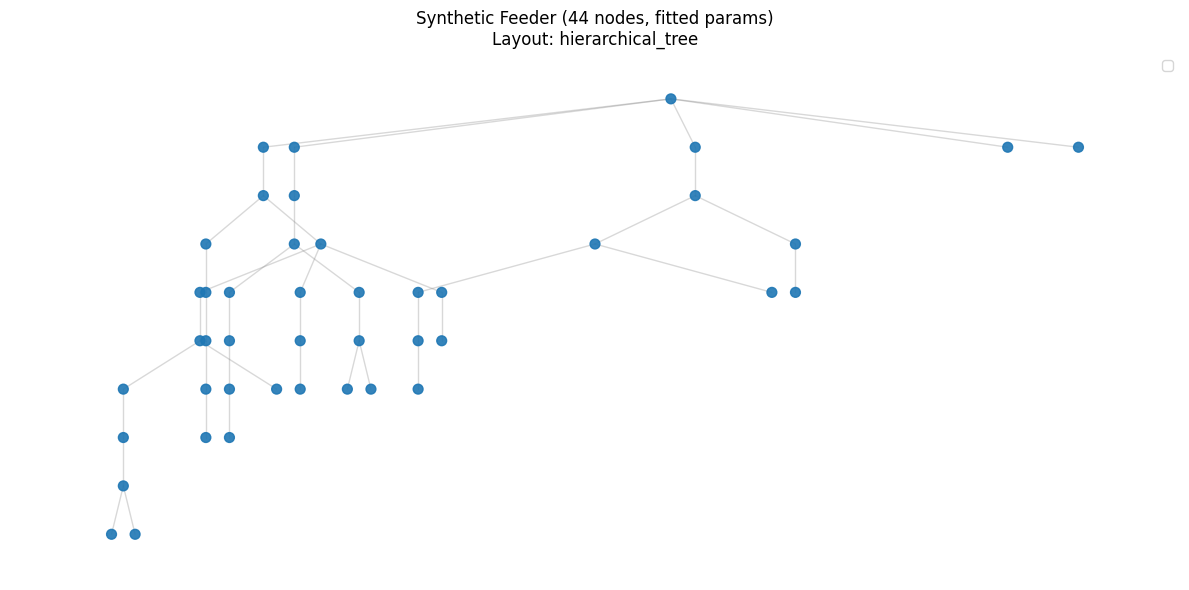

viz.plot_grid(
G_syn,
layout="hierarchical_tree",
title=f"Synthetic Feeder ({n_ref} nodes, fitted params)",
figsize=(12, 6),
)
Calculating layout 'hierarchical_tree'...

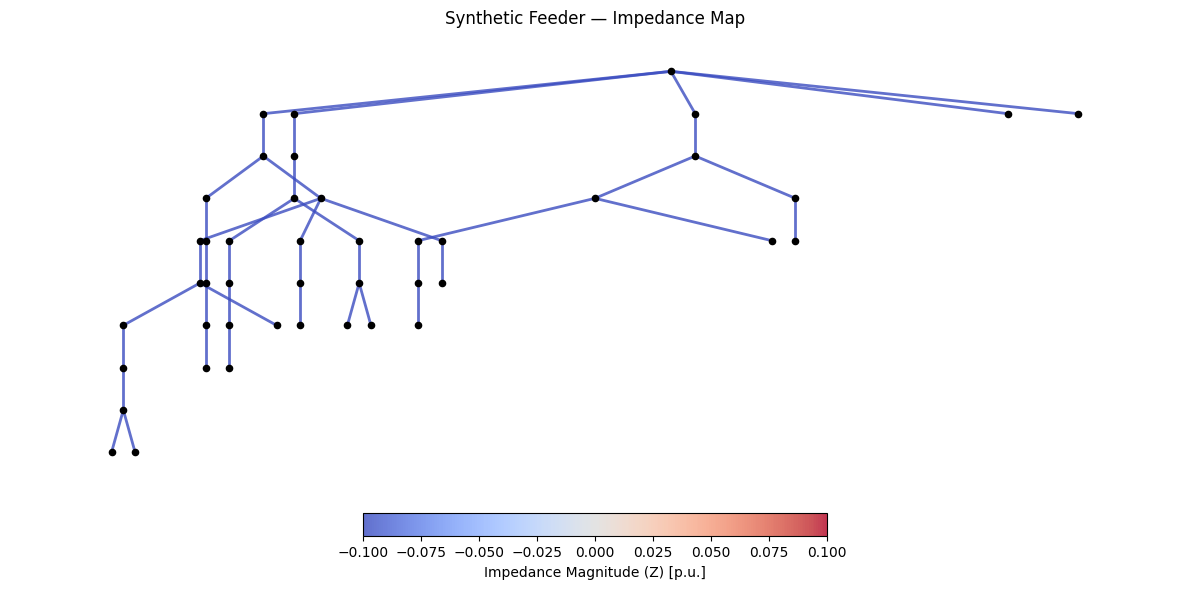

[11]:
viz.plot_impedance(
G_syn,
layout="hierarchical_tree",
title="Synthetic Feeder — Impedance Map",
figsize=(12, 6),
)
7. Statistical Distribution Comparison

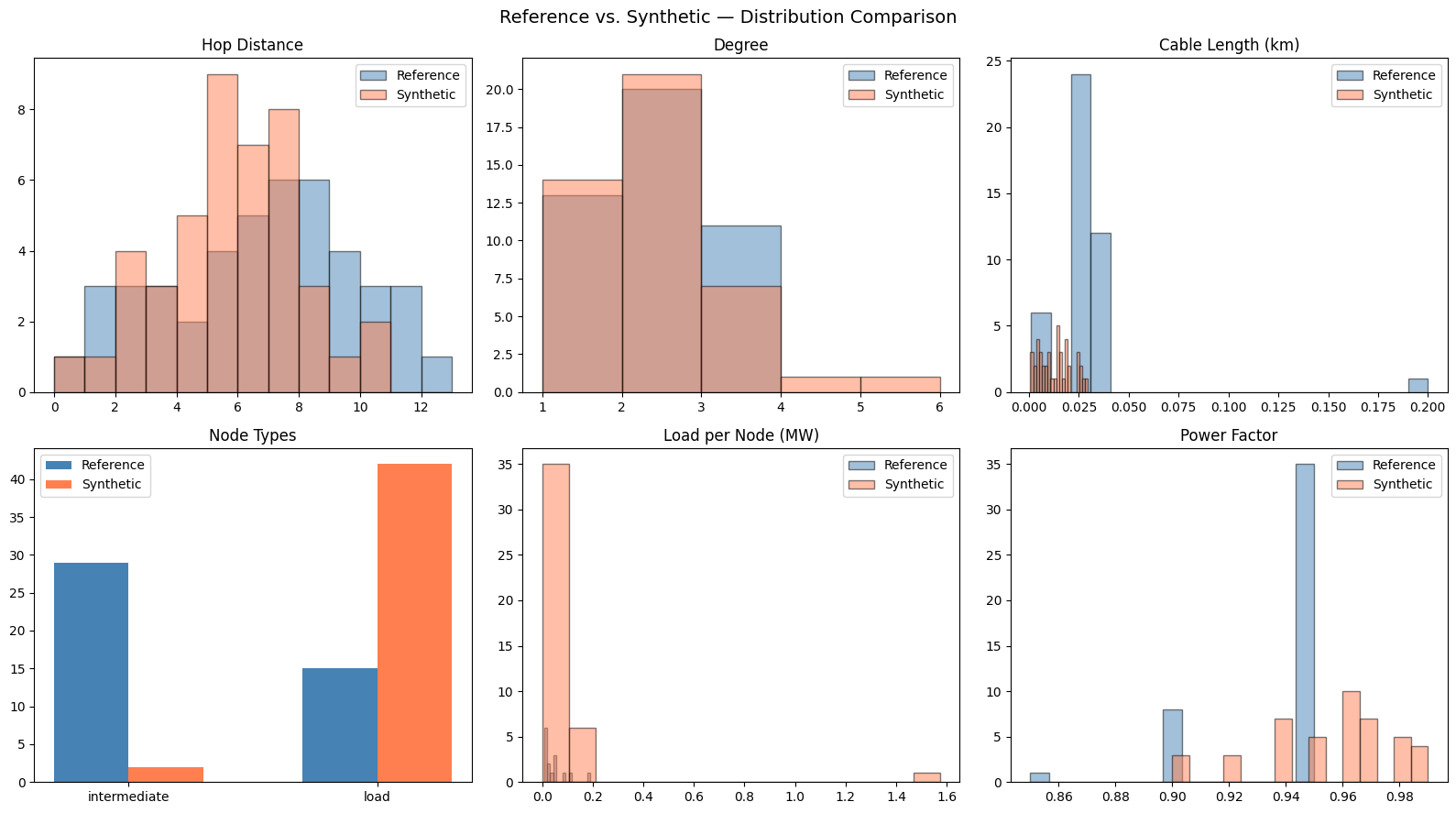

[12]:
fig, axes = plt.subplots(2, 3, figsize=(16, 9))
# --- Hop distance ---
hops_ref = [ref.nodes[n]["h"] for n in ref.nodes]
hops_syn = [G_syn.nodes[n]["h"] for n in G_syn.nodes]
bins_h = range(max(max(hops_ref), max(hops_syn)) + 2)
axes[0, 0].hist(hops_ref, bins=bins_h, alpha=0.5, label="Reference", color="steelblue", edgecolor="black")
axes[0, 0].hist(hops_syn, bins=bins_h, alpha=0.5, label="Synthetic", color="coral", edgecolor="black")
axes[0, 0].set_title("Hop Distance")
axes[0, 0].legend()
# --- Degree ---
deg_ref = [d for _, d in ref.degree()]
deg_syn = [d for _, d in G_syn.degree()]
bins_d = range(1, max(max(deg_ref), max(deg_syn)) + 2)
axes[0, 1].hist(deg_ref, bins=bins_d, alpha=0.5, label="Reference", color="steelblue", edgecolor="black")
axes[0, 1].hist(deg_syn, bins=bins_d, alpha=0.5, label="Synthetic", color="coral", edgecolor="black")
axes[0, 1].set_title("Degree")
axes[0, 1].legend()
# --- Cable length ---
len_ref = [ref.edges[e]["length_km"] for e in ref.edges]
len_syn = [G_syn.edges[e]["length_km"] for e in G_syn.edges]
axes[0, 2].hist(len_ref, bins=20, alpha=0.5, label="Reference", color="steelblue", edgecolor="black")
axes[0, 2].hist(len_syn, bins=20, alpha=0.5, label="Synthetic", color="coral", edgecolor="black")
axes[0, 2].set_title("Cable Length (km)")
axes[0, 2].legend()
# --- Node types ---
types_ref = Counter(ref.nodes[n]["node_type"] for n in ref.nodes)
types_syn = Counter(G_syn.nodes[n]["node_type"] for n in G_syn.nodes)
all_types = sorted(set(types_ref) | set(types_syn))
x_pos = np.arange(len(all_types))
axes[1, 0].bar(x_pos - 0.15, [types_ref.get(t, 0) for t in all_types], 0.3, label="Reference", color="steelblue")
axes[1, 0].bar(x_pos + 0.15, [types_syn.get(t, 0) for t in all_types], 0.3, label="Synthetic", color="coral")
axes[1, 0].set_xticks(x_pos)
axes[1, 0].set_xticklabels(all_types)
axes[1, 0].set_title("Node Types")
axes[1, 0].legend()
# --- Load per node ---
loads_ref = [ref.nodes[n]["P_mw"] for n in ref.nodes if ref.nodes[n].get("P_mw", 0) > 0]
loads_syn = [G_syn.nodes[n]["P_mw"] for n in G_syn.nodes if G_syn.nodes[n].get("P_mw", 0) > 0]
axes[1, 1].hist(loads_ref, bins=15, alpha=0.5, label="Reference", color="steelblue", edgecolor="black")
axes[1, 1].hist(loads_syn, bins=15, alpha=0.5, label="Synthetic", color="coral", edgecolor="black")
axes[1, 1].set_title("Load per Node (MW)")
axes[1, 1].legend()
# --- Power factor ---
pf_ref = [ref.nodes[n]["pf"] for n in ref.nodes]
pf_syn = [G_syn.nodes[n]["pf"] for n in G_syn.nodes]
axes[1, 2].hist(pf_ref, bins=15, alpha=0.5, label="Reference", color="steelblue", edgecolor="black")
axes[1, 2].hist(pf_syn, bins=15, alpha=0.5, label="Synthetic", color="coral", edgecolor="black")
axes[1, 2].set_title("Power Factor")
axes[1, 2].legend()
plt.suptitle("Reference vs. Synthetic — Distribution Comparison", fontsize=14)
plt.tight_layout()
plt.show()
8. Generate an Ensemble and Aggregate Comparison
[13]:
# Generate 10 synthetic feeders matching the reference size
ensemble = []
for seed in range(10):
g = SchweetzerFeederGenerator(params=fitted_params, seed=seed)
feeder = DistributionGrid.from_nx(
g.generate_feeder(
n_nodes=n_ref,
total_load_mw=ref.total_load_mw,
total_gen_mw=ref.total_gen_mw,
v_nom_kv=0.4,
)
)
ensemble.append(feeder)
print(f"Generated {len(ensemble)} synthetic feeders\n")
for i, f in enumerate(ensemble):
print(f" Feeder {i}: {f.number_of_nodes()} nodes, max_hop={f.max_hop}, "
f"load={f.total_load_mw:.4f} MW, radial={f.is_radial}")
# Use GraphComparator for the first synthetic feeder vs reference
comparator = GraphComparator(
synth_graph=G_syn,
ref_graph=ref,
synth_label="Synthetic",
ref_label="CIGRE LV",
)
comparator.print_metric_comparison(title="DISTRIBUTION FEEDER COMPARISON")

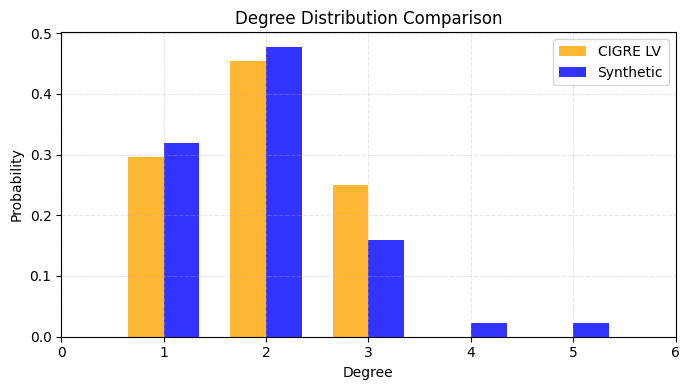

comparator.plot_degree_comparison(log_scale=False, fig_size=(7, 4), show_lines=True)
Generated 10 synthetic feeders
Feeder 0: 44 nodes, max_hop=14, load=3.3174 MW, radial=True
Feeder 1: 44 nodes, max_hop=11, load=0.5576 MW, radial=True
Feeder 2: 44 nodes, max_hop=12, load=0.7935 MW, radial=True
Feeder 3: 44 nodes, max_hop=13, load=0.4644 MW, radial=True
Feeder 4: 44 nodes, max_hop=12, load=0.5117 MW, radial=True
Feeder 5: 44 nodes, max_hop=11, load=2.5460 MW, radial=True
Feeder 6: 44 nodes, max_hop=13, load=1.0276 MW, radial=True
Feeder 7: 44 nodes, max_hop=11, load=2.2155 MW, radial=True
Feeder 8: 44 nodes, max_hop=13, load=1.3603 MW, radial=True
Feeder 9: 44 nodes, max_hop=13, load=0.5830 MW, radial=True
============================================================
DISTRIBUTION FEEDER COMPARISON
============================================================
Metric Synthetic CIGRE LV
Nodes 44 44
Edges 43 43
Density 0.045455 0.045455
Connected? Yes Yes
Diameter (LCC) 16 23
Avg Path Len (LCC) 6.9979 9.0433
Avg Clustering 0.0000 0.0000
Transitivity 0.0000 0.0000
============================================================
9. KL-Divergence: Ensemble vs. Reference
[14]:
# Compare each synthetic feeder against the reference
all_kl = []
for i, f in enumerate(ensemble):
kl = compare_feeders(ref, f)
all_kl.append(kl)
print(f"Feeder {i}: " + ", ".join(f"{k}={v:.4f}" for k, v in kl.items()))
# Average KL-divergences across ensemble
print("\n--- Average KL-divergence (ensemble vs. reference) ---")
metrics = list(all_kl[0].keys())
for m in metrics:
vals = [kl[m] for kl in all_kl]
print(f" {m:25s} mean={np.mean(vals):.4f} std={np.std(vals):.4f}")
Feeder 0: hop_distance_kl=0.2300, degree_kl=0.1482, cable_length_kl=2.3346
Feeder 1: hop_distance_kl=0.6917, degree_kl=0.0707, cable_length_kl=9.2128
Feeder 2: hop_distance_kl=0.2736, degree_kl=0.3058, cable_length_kl=9.2062
Feeder 3: hop_distance_kl=0.1685, degree_kl=0.0280, cable_length_kl=9.1518
Feeder 4: hop_distance_kl=0.1931, degree_kl=0.0316, cable_length_kl=8.9255
Feeder 5: hop_distance_kl=0.7499, degree_kl=0.0316, cable_length_kl=9.2377
Feeder 6: hop_distance_kl=0.2124, degree_kl=0.1075, cable_length_kl=22.8413
Feeder 7: hop_distance_kl=0.6432, degree_kl=0.0477, cable_length_kl=8.8059
Feeder 8: hop_distance_kl=0.2281, degree_kl=0.1202, cable_length_kl=9.5514
Feeder 9: hop_distance_kl=0.2072, degree_kl=0.0477, cable_length_kl=8.9631
--- Average KL-divergence (ensemble vs. reference) ---
hop_distance_kl mean=0.3598 std=0.2222
degree_kl mean=0.0939 std=0.0810
cable_length_kl mean=9.8230 std=4.7932

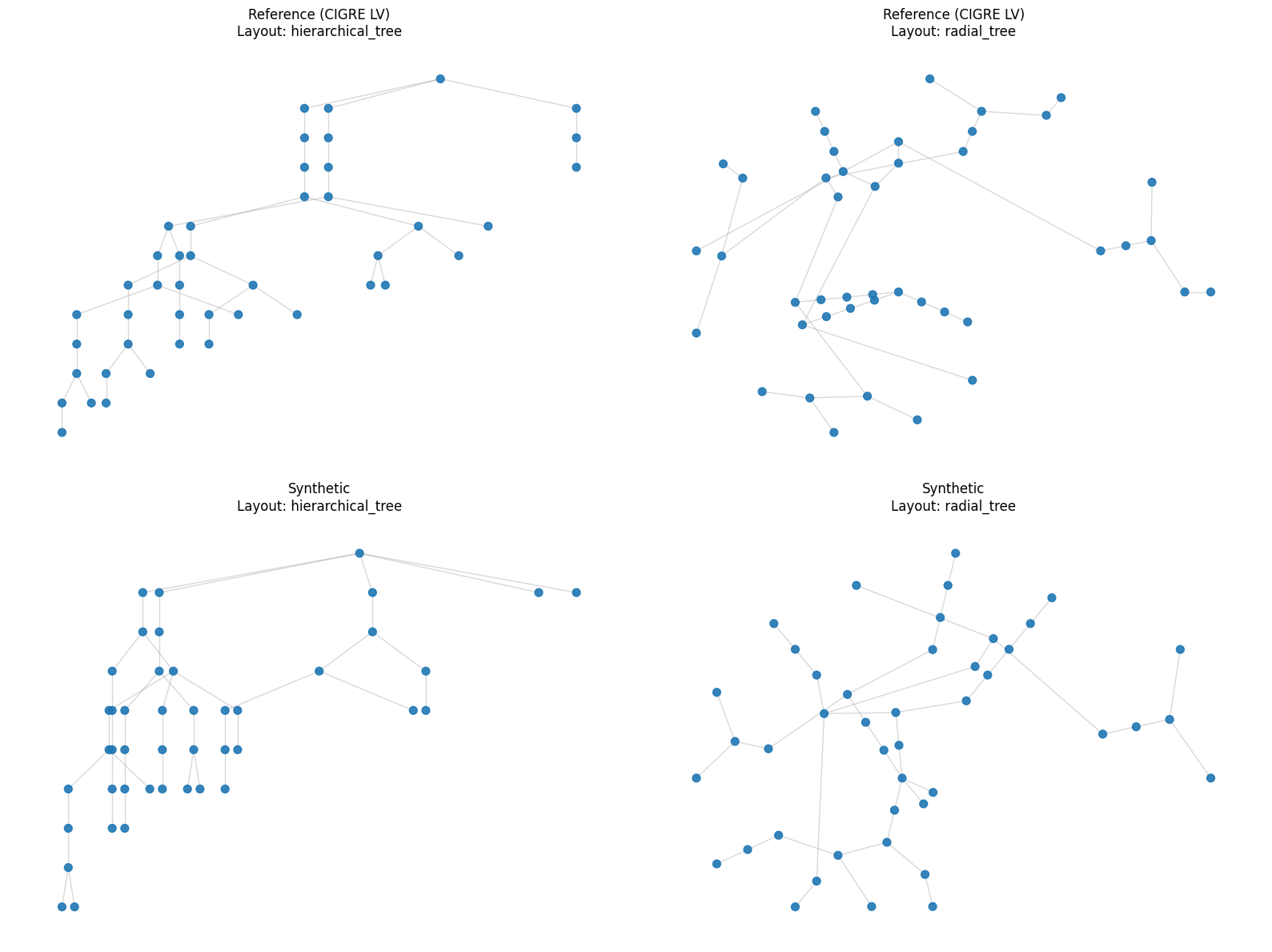

10. Side-by-Side Visualization
[15]:
# Side-by-side: Reference vs Synthetic with tree layouts
fig, axes = plt.subplots(2, 2, figsize=(16, 12))
for col, lname in enumerate(["hierarchical_tree", "radial_tree"]):
for row, (g, label) in enumerate([(ref, "Reference (CIGRE LV)"), (G_syn, "Synthetic")]):
ax = axes[row, col]
if lname == "hierarchical_tree":
pos = viz._hierarchical_tree_layout(g)
else:
pos = viz._radial_tree_layout(g)
colors = viz._get_node_colors(g)
nx.draw_networkx_edges(g, pos, ax=ax, alpha=0.3, edge_color="gray")
nx.draw_networkx_nodes(g, pos, ax=ax, node_color=colors, node_size=50, alpha=0.9)
ax.set_title(f"{label}\nLayout: {lname}")
ax.axis("off")
plt.tight_layout()
plt.show()
